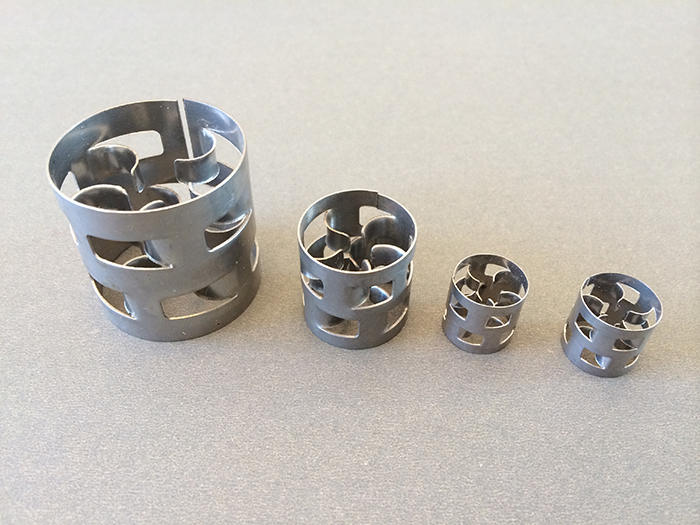

NC Metal Pall Ring (NC-MPR)

Details

NC-MPR Direct replacement of the widely used Pall^®Ring:

NC-MPR Advantage

Lower pressure drop
Good liquid / gas distribution and higher mass transfer efficiency
Versatility, Easily wettable, High resistance to fouling, High Temperature
High Mechanical Strength, suitable for deeper beds
High temperature resistance

Technical Parameter

Size	Dimension (mm)	Quantity n/m3	Specific Surface m2 /m3	Bulk Density kg/m3	Void %
10	Φ10 xH10 x 0.3	768000	482	571	92.7
16	φ16 xH16 x 0.3 (0.4)	214000	338	408(543)	93.1
25	φ25 xH25 x 0.5 (0.6)	52000	218	403(483)	94.8
38	φ38 xH38 x 0.6 (0.8)	15200	141	326 (435)	96.08
50	φ50 xH50 x 0.8 (1.0)	6500	107	322 (403)	95.9
76	Φ76 xH76 x 1.0 (1.2)	1830	74	262(314)	97
89	Φ89 xH89 x 1.2 (1.5)	1200	65	293(353)	98

Specification for NC-MPR
